NICKEL CONDUCTIVE COATING

NICKEL CONDUCTIVE COATING

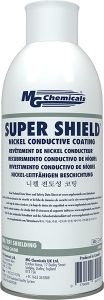

Part Number: MG841AR

MG Chemicals 841AR is a conductive coating that consists of a one-part solvent-based acrylic lacquer, pigmented with a highly conductive nickel flake. It is smooth, hard, and abrasion resistant. It can be easily applied by spray. It has a quick dry time, with no heat cure necessary. It adheres strongly to most injection-molded plastics, such as ABS, PBT and PVA. It also provides strong corrosion resistance, and is suitable for use in marine environments.

Can size is 340gm in 290 mL.

After the part has cured, usually 24 hours, it can now be easily plated with our Bright Acid Copper plating kit.

MG Chemicals Super Shield Nickel Conductive Coating, 340g Features

• UL Recognized (File # E202609)
• Tested in compliance with IEEE Std. 299-1997
• High Conductivity
• Tough and durable coating
• Stronger adhesion than water based coatings
• Low VOC’s
• Median attenuation 50 dB ±25 dB per 38 μm (~1.5 mil) for frequency range of 10 to 18,000 MHz

• Theoretical Coverage @ 2 mil      2,500    cm2

See below for TDS and SDS
