EN1 Electroless Nickel Kit 2.4 Litres

One coat system - eliminates 2 steps!



No Batteries, Rectifiers or Other Power Sources Required. Electroless cobalt plating requires no anodes, power supply or electrical connection of any kind.

The process simply entails mixing together some solutions, heating them to just off the boil, and then immersing the part to be plated.

An auto catalytic electrochemical reaction takes place and the cobalt is evenly deposited all over the part being plated.

The thickness of the plate will depend on the duration of immersion. To stop the reaction, remove the part from the solution.

As of 1 October 2019 this kit does not include heaters.



Plates Many Metals - All Steels, Stainless Steel requires activating or plating with Flash Copper, Irons, Copper, Brass, Bronze, Titanium, Lead Free Solders, and Nickel Alloys. Pot Metal with Pot Metal Primer Pretreatment or Flash Copper. Aluminum With Zincate Pretreatment.

Plate on, steel, iron, copper, brass, bronze and more.
Plates without power, simply heat solution and immerse part.
Plates inside tubes and indentations.

When electroless plating, you may not plate any item that has a surface area exceeding the maximum load of the bath. The maximum load is 30 sq. in./quart of plating bath. Refer to the table below

After making up the initial solution, each kit can be replenished with the included replenisher chemical, to a maximum of 10 times. After 10 times, the bath must be disposed and a fresh bath made. Based on the size of the kit, each kit will plate a certain amount of surface area. Refer to the table below. Replenishment chemicals can be purchased separately.

We recommend electroless plating for small parts, or when plating inside tubes or heavily recessed areas.

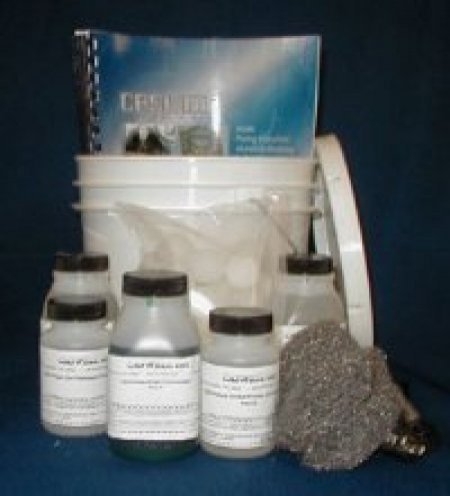

EN1 Small Kit [Makes 2.4 litres] USA refer as Mini Kit, (Makes 5 Pints):

5 litrel Plastic Tank and Lid
Mist Control Balls
Electroless Nickel Concentrate - part A 250ml [8 oz]
Electroless Nickel /Krome™ Concentrate - part B 375ml [12 oz]
Electroless Nickel/Krome™ Concentrate - part C 250ml [8 oz]
END Plate out disposal concentrate 120ml [4 oz]
2 Steel Plate Out Pads
The Caswell Plating Manual
Free Technical Support

When electroless plating, you may not plate any item that has a surface area exceeding the maximum load of the bath. The maximum load is 194 sq cm per litre [30 sq. in./quart] of plating bath. Refer to the table below

After making up the initial solution, each kit can be replenished with the included replenisher chemical, to a maximum of 10 times. After 10 times, the bath must be disposed and a fresh bath made. Based on the size of the kit, each kit will plate a certain amount of surface area. Refer to the table below. Replenishment chemicals can be purchased separately.

Kit Size Maximum Load (largest size part) Approx Total Surface Area Available @ 0.0005"
EN1 484 sq cms / 75 sq in. 852sq cms / 132 sq in.
EN2 968 sq cms / 150 sq in. 1703 sq cms / 264 sq in.
EN3 1935 sq cms / 300 sq in. 3406 sq cms / 528 sq in.
EN4 3871 sq cms / 600 sq in. 6813 sq cms / 1056 sq in.

Electroless nickel plating requires no anodes, power supply or electrical connection of any kind. The process simply entails mixing together some solutions, heating them to just off the boil, and then immersing the part to be plated. An auto catalytic electrochemical reaction takes place and the nickel is evenly deposited all over the part being plated. The thickness of the plate will depend on the duration of immersion. To stop the reaction, remove the part from the solution.

Like all plating, the brightness of the plate depends on the brightness of the part before plating. The brighter the shine initially, the brighter the shine after plating. Numerous variations of the final finish are achieved by changing the surface preparation.

Electroless nickel plating is not new; it has many applications in industry. Because the system plates evenly over all areas of the part, even down tubes and holes, it is frequently used to plate firearms and small hand tools. For the motorcycle restoration enthusiast, electroless nickel is a great tool for evenly plating the air cooling fins on many engine blocks, particularly older Indians & Harleys.

Electroless nickel plates at an approx. rate of 1 mil (1/1000"), 25 microns per hour. Indoor decorative applications will need approx. 0.25 mil or 15 min. of plating. General outdoor items (hand tools, hand guns) should receive 0.5 mils or 30 min. Items requiring high corrosion resistance should receive 1 mils or 60 min.

As the baths are used, nickel depletes from the solution. You will need to replenish this periodically, using our unique method of calculating the nickel loss. Additions to the solution may be made with small quantities of Part A & Part C.

The MSDS for this product can be found by scrolling down this page,



Price: $230.00
Quantity:
Total:

Reviews

Average Rating
  • Average Rating 4/5 Stars.
  • 1
  • 2
  • 3
  • 4
  • 5
(4 out of 5 with 1 vote)
Works really well.
  • Rating 4/5 Stars.
  • 1
  • 2
  • 3
  • 4
  • 5
Jesse Searls (East Fremantle) - August 9th 2018
I purchased this kit some years ago, and I am reviewing it because I am very happy with the results and ease of use.

If you clean things properly, and make the bath according to instructions you can get a beautiful finish inside and out of any complex shape. The finish is hard and does not come off even under stress.

The surface finish of your part before it goes in the bath is important, as that will be the finish of the part after plating. I can get a nice mirro [...read more]
