The dual action (coarse and fine set) control knobs make tuning the voltage and current level smooth, precise and fast, because of the rotary encoder and microprocessor control. The intelligent fan speed to ensure a quiet and safe operation of the power supply at different ambient temperatures and power output levels.
Setting the CC current limiting can be done in open circuit at output poles. The isolated ground construction allow parallel and series connection of power supplies with ease and safety. The three user defined presets of voltage and current limiting levels facilitate quick access to frequently used VI settings.
- Variable Output Voltage...1-16VDC
- Variable Output Current...0-60A
Rotary Encoder Control Knob with coarse and fine tuning.
3 user defined V & I presets (recalls)
Full Remote Control of V, I and output on-off
High RFI immunity and excellent EMI
Isolated ground, Active PFC & high power efficiency.
Intelligent fan control from zero to full speed
Over load, Over Temperature and Tracking Over Voltage protections.
Voltage Meter...3 Digit LED Display ±0.2% +3counts
Current Meter...3 Digit LED Display ±0.2% +3counts

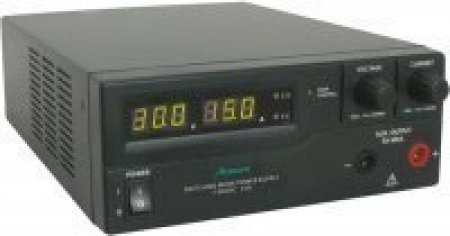

NB, Colour of unit may be different to that shown. They can be black, white, grey or cream.
