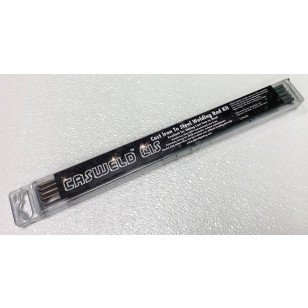

Casweld™ Cast Iron CI Welding Rod Kit " 5/32" Diameter - 4 Rod Kit

Casweld

Casweld™ Cast Iron Welding Rod Kit

For joining of all weldable cast iron grades to themselves or to low carbon steel alloys.

5/32" Diameter - 4 Rod Kit



Extra strong arc drive facilitates joining in all positions

High efficiency weld metal transfer totally eliminates electrode overheating

Excellent performance on poor quality porous castings

Consists of an iron-nickel- austenite with finely distributed graphite, pre-coated with Flux

Perfect for:

  • Intake and Exhaust Manifolds
  • Furnaces

Recommended Current: DC Reverse (+) or AC

Diameter 3/32" 1/8" 5/32"
Minimum Amperage 50 70 100
Maximum Amperage 70 100 130

Deposition Rates:

Diameter

Length

Weldmetal/ Electrode

Arc Time of Deposition min/ lb

Amperage Settings

3/32"

12"

.44 oz

45

70

1/8"

14"

.76 oz

22

90

5/32"

14"

1.07 oz

20

120

Tensile Strength: 76,000 psi  (525 MPa)

Yield Strength: 53,000 psi (370 MPa)

Elongation: 29%

Hardness: Rockwell B 87-90, Brinell 179 Vickers 197

Welding Techniques: Guide the electrode at a steep angle keeping the arc length short. Use short staggered beads when welding restrained parts.

Welding Positions: Flat, Vertical up, Horizontal, Overhead

MADE IN THE USA
