30 AMP 30 VDC CONSTANT CURRENT POWER SUPPLY

This POWER SUPPLY is ideal for anodizing as it has the capapbilities of allowing the voltage to be higher, up to 30 volts DC. With other power supplies when the current (amps)  get near to the maximum for that unit they usually run out of voltage, and wont stay in constant current mode.

Other Features are;

This high current switching mode DC regulated output power supply is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.

The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply.

The output voltage level and ON-OFF can be externally controlled via the remote terminal.

It is ideal for applications that need good quality highDC current network with precise point of voltage regulation.

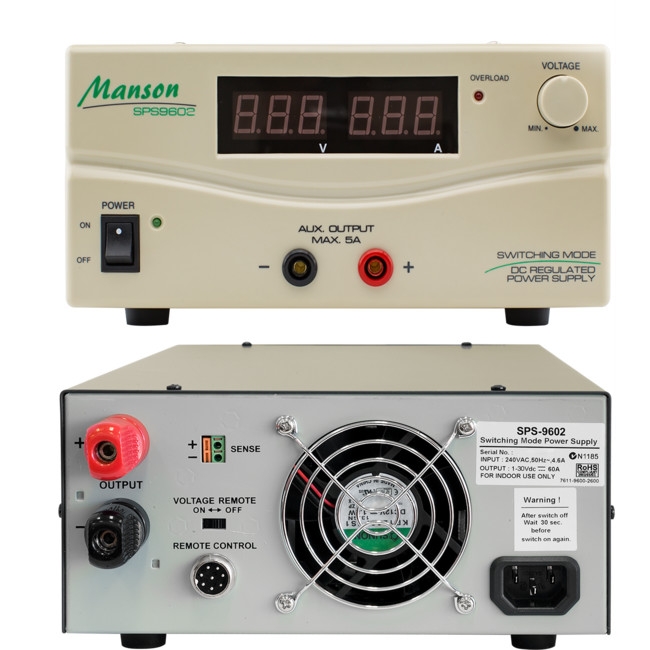

SPS-9602 has a small footprint for its 900W continuous maximum power.

It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.

Features:

  • Total max. continuous output current 30A
  • Main Output/Remote Sensing/ Remote Control/ terminalsat the back
  • Front terminals  3A limiting.
  • ( Precise Load Point Voltage )
  • Remote Sensing for remote point of regulation.
  • Remote control terminals for output voltage adjustment and*on/off"
  • 29HR Count Down Timer (Optional) for Output ON/OFF
  • Floating Ground Design
  • Overload / Over-temperature / Short Circuit Protections
  • Constant Current mode with LED indicator prevents overloading
  • Variable speed thermally controlled fan
  • High RFI stability
  • Active power factor correction ( P.E >0.97 )

Specifications:

  • Variable Output Voltage: 1- 30Vdc
  • Total Rated Output Current (Main Output + Front Output):  30A
  • Rated Output Current (Main Output):  30A
  • Rated Output Current (Front Output):  3A
  • Load Regulation (Main Output): 0.1%+5mV
  • Line Regulation (Main Output): 0.05% +3mV
  • Ripple & Noise (Peak-Peak): 50mVp-p
  • Input Voltage: 230Vac , 50Hz- ( or on request)
  • Efficiency: >85%
  • Meter Type: LED Meter
  • Voltmeter Range: 3 digit display
  • Ammeter Range: 3 digit display
  • Meter's Accuracy: ±I% +1 count
  • Protection Devices: Overload (Constant Current Limiting), Over Temperature, Short Circuit,
    OVP protections
  • Cooling System: Variable speed thermally controlled fan
  • Special Feature: Remote sensing, Remote output voltage control and *on/off*
  • Approvals CE EMC : EN 55022 , LVD : EN 60950
  • Dimensions (W:x H xD): 220 x 110" 360 mm (8.7" 4.3" 14 in.)
  • Weight: 5.8kgs ( 12.81bs )
  • Remarks: Power factor correction >0.95 at optimal load

12 month warranty from purchase date.

Price: $699.00
