PICKLE #4
PART NUMBER: PIC4

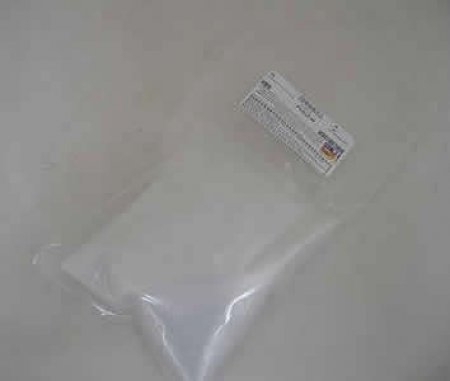

COMES FROM THE USA IN A 2 POUND PACK, [about 1 k]
AT LAST! Eliminate using unpleasant muriatic acid.
For stripping rust from steel & also activates zinc, pot metal, lead, 60/40 solder, copper & its alloys.
No unpleasant fumes.
More moderate action, less pitting.
This system is ideal for the preparation of lead work such as bullets, sun catchers, lead came, etc.
Pickle #4 is a general-purpose metal activator and de-oxidizer containing fluoride. Used at room temperature on steel, copper, brass and zinc.
PICKLE #4 is a free flowing mixture of dry acids and is more convenient and safer to use than liquid mineral acids. It does not produce the undesirable fumes given off with strong acids. It is dissolved in water and used at ambient temperatures to remove light to medium surface rust from steel and to activate steel surfaces prior to blackening with Black Oxide blackening solutions. Heavily rusted surfaces may require elevated temperatures of 150°F to 170°F. No venting required when used at ambient temperatures. It is used following the water rinse after cleaning the steel surfaces with SP DEGREASER.
PICKLE #4 is more moderate in its action on steel surfaces than mineral acids and produces a uniformly active surface.
PICKLE #4 is also used to activate zinc-plated surfaces, die cast zinc surfaces, copper and copper alloy surfaces prior to blackening, oxidizing, antiquing, chromating or other finishing.
EQUIPMENT REQUIRED
PICKLE #4 solutions must be contained in acid-resistant tanks and containers. Polypropylene, polyethylene, PVC or rubber-lined steel are suitable. If heaters are required they must be glass or Teflon coated.
SOLUTION MAKE-UP
| Metal |
Action |
Makeup & Use |
| Steel |
activation |
8 oz/gallon
30 to 60 second immersion
|
| |
rust removal |
16 to 32 oz/gallon
2 to 10 minutes immersion |
| Copper and its Alloys |
deoxidizing |
8 to 16 oz/gallon
30 to 60 seconds immersion |
Plated and die cast zinc
Lead/lead solder |
deoxidizing |
4 to 8 oz/gallon
30 seconds to 2 mins immersion |
Residual PICKLE #4 solution must be removed with a thorough cold-water rinse prior to further finishing.
Conversion to gm/L 8 oz is about 250gm and 1 gallon is c. 3.78 litres
SOLUTION CONTROL
The strength of the solution is maintained by small periodic additions of PICKLE #4 salts. The solution is dumped only when its effectiveness is diminished by accumulation of metals, dirt, oil, etc.
